TRENTON #1 Wax-Tape |
|
|
Trenton #1 Wax-Tape prevents
corrosion on underground pipe, including wet and irregular surfaces.
It requires no waiting time or drying time, can be backfilled immediately,
and supports cathodic protection. Trenton #1 Wax-Tape is user friendly,
contains no VOCs, is non-toxic, non-hazardous and non-carcinogenic.
It provides excellent protection for a variety of applications,
including couplings, valves, fittings, weld cutbacks and cadwelds.
Trenton #1 Wax-Tape is easily applied to small and large valves
and bolts and provides long lasting protection.
#1 Wax-Tape is used in the water industry and
conforms to AWWA Standard C217.
Rehabilitation and repair of coatings are made easy because of minimal surface preparation, compatibility, with other coatings, and immediate backfill.
The #1 Wax-Tape conforms to all types of fittings
and irregular surfaces. It can also be applied to wet surfaces.
#1 Wax-Tape is provided in conveniently sized
coreless rolls. Various widths and lengths are available.
- Description: #1 Wax-Tape is
a plastic-fiber felt, saturated with a blend of microcrystalline
waxes, plasticizers and corrosion inhibitors, forming a tape wrapper.
Ideal because of its excellent conformability over irregular surfaces.
- End Use: For application on
below ground metal surfaces, pipe or fittings to prevent corrosion.
- Packaging: In rolls 4in. and
6 in. widths by 9ft. length. Special widths and lengths are available.
- Conforms to irregular shapes
- Can be applied over wet surfaces
- Superior wetting and adhesion properties
- Composed of inert materials
- Self-sealing lap seams
- No drying or curing time before backfilling
- Can be applied at low temperatures
- Ideal where only minimal surface preparation
is possible
- Easily removable for temporary installations
and for examination of metal surface
- Easy clean-up with towel and hand cleaner
|
Specifications |
| Color |
Brown |
| Saturant pour point |
115° -125° F |
| Thickness |
70-90 mils |
| Dielectric strength |
170 volts-mil |
|
TRENTON #2 Wax-Tape | |
|
Trenton #2
Wax-Tape prevents corrosion on above ground piping, bridge
crossings, vaults, and other straight or irregular surfaces. It
is easy to apply, requires no special equipment, is compatible with
other coatings, and requires only minimal surface preparation. Non-toxic
and non-carcinogenic, #2 Wax-Tape is composed of inert, non-biodegradable
materials, so it is essentially unaffected by the elements.
#2A Wax-Tape completely conforms to irregular surfaces, and is unaffected by
the elements.
#2A Wax-Tape provides long-lasting protection of bridge spans from UV, weathering
and road salt runoff.
Wax-Tapes are applied
with minimal surface preparation on wet, sweating pipe that may
be found in vaults or meter stations.
- Description: #2 Wax-Tape is a plastic-fiber felt, saturated with a blend of
high melt microcrystalline wax, solvents, and corrosion inhibitors,
forming a tape wrapper that firms up and is then suitable for
painting.
- End
Use: For application of above ground piping, bridge crossings,
vaults, and other straight or irregular surfaces to prevent corrosion.
- Packaging: Packaging available in rolls of 4 in. or 6 in. width by 9
ft. length. Special widths and lengths are available as per customer
requirements.
|
A simple and inexpensive solution for lead
paint problems is to encapsulate with #2 Wax-Tape
|
Details |
#2 Wax-Tape |
#2A Wax-Tape |
#2W Wax-Tape |
Color |
Brown |
Aluminum |
White |
Saturant pour point |
125° -135° F |
125° -135° F |
125° -135° F |
Thickness |
70-90 mils |
70-90 mils |
70-90 mils |
Dielectric
strength |
100 volts/mil |
100 volts/mil |
100 volts/mil |
|
-
Ideal where
only minimal surface preparation is possible
-
Resistant
to corrosive industrial atmospheres
-
Can be applied
over wet surfaces
-
Conforms
to irregular shapes
-
Tape firms
up after application for extra mechanical strength
-
Composed
of inert materials
-
Self-sealing
-
Can be painted
-
Easy clean
up with towel and hand cleaner
-
Unaffected
by exposure to the elements
|
Pipe
Size |
Tape
Width |
Sq.
Yards/100 ft.
1"overlap 55% overlap |
Gallons
of Wax-Tape
Primer/100ft. |
2" |
4" |
8 |
14 |
.5 |
4" |
4" |
17 |
28 |
1.0 |
6" |
4" |
26 |
42 |
1.5 |
8" |
4" |
35 |
56 |
2.0 |
10" |
6" |
38 |
70 |
2.5 |
12" |
6" |
46 |
84 |
3.25 |
14" |
6" |
54 |
98 |
3.75 |
16" |
6" |
62 |
112 |
4.25 |
18" |
6" |
69 |
126 |
4.75 |
20" |
6" |
77 |
140 |
5.25 |
22" |
6" |
85 |
154 |
5.75 |
24" |
6" |
92 |
168 |
6.25 |
|
TRENTON WAX TAPE
PRIMER (Brown)
|
|
|
Trenton Wax-Tape Primer is a blend of microcrystalline waxes, plasticizers, and corrosion inhibitors (no clay fillers). It has a paste-like consistency and is designed to displace moisture and wet the surface, ensuring adhesion of the tape. It is
easily applied by hand.
As a surface conditioner for underground
metal surfaces prior to application of #1 Wax-Tape, and #2 brown Wax-Tape.
Wire brush and scrape the surface clean.
Apply Wax-Tape primer by hand (glove). A thin film of primer
will be sufficient. On wet, cold or rusty surfaces, rub and
press WaxTape Primer firmly onto these areas, displacing moisture
and ensuring adhesion to the surface. After application of
the primer, #1 Wax-Tape, and #2 brown Wax-Tape may be applied immediately.
One-gallon cans, four per carton. 32lb/carton.
| Color |
Brown |
| Pour point |
100° - 110°F |
| Flash point |
350°F minimum |
| Coverage (approximate) |
1 gal/100 sf |
- Goes on easily by hand
- Displaces moisture
- Penetrates surface rust
- Facilitates "wetting" of surfaces
- Ensures adhesion of tape
- Only a thin coat is required
- No waiting for drying or curing
- No mixing, thinning or stirring
- Unlimited shelf life, even after opening
- Compatible with other coatings
- Non-toxic, non-flammable, no-carcinogenic,
no VOCs
|
|
|
TRENTON WAX TAPE
PRIMER (White)
|
 |
|
Wax-Tape Primer is a blend of petroleum wax, plasticiser and corrosion inhibitors. It has a paste-like consistency, and is designed to displace moisture and wet the surface, ensuring adhesion of the tape. Wax-Tape Primer is easily applied by hand.
As a surface conditioner and wetting agent for above ground metal surfaces prior to application of #2 colored Wax-Tape
Wire brush or wipe the surface clean. Apply Wax-Tape Primer by hand. A thin film of primer rubbed and pressed on the surface will be sufficient. On wet, cold or rusty surfaces, rub and press Wax-Tape Primer firmly onto these areas, displacing any moisture and ensuring adhesion to the surface. After application of the primer, #2 colored Wax-Tape may be applied immediately.
One gallon cans, four per case, 32 lbs. per carton.
| |
Brown |
White |
| Pour Pont |
100-110°F |
110-120°F |
| Flash Point |
350°F |
350°F |
| Coverage (approximate) |
1 gal/100sf |
1gal/100sf |
* White primer should be used with aluminum or white pigmented tapes.
- Goes on easily by hand
- Displaces moisture
- Penetrates surface rust
- facilitates "wetting" of surfaces
- Ensures adhesion of tape
- Only a thin coat s required
- No waiting for drying or curing
- No mixing, thinning or stirring
- Unlimited shelf life, even after opening
- Compatible with other coatings
- Non-toxic, non-hazardous, non-carcinogenic
|
|
|
TRENTON Poly-Ply
|
|
 |
Poly-Ply plastic wrapper consists of three 50 gauge, clear, polyvinylidene chloride plastic, high cling membranes, wound together as a single sheet. It provides a mechanical and electrical barrier over graycoat while remaining flexible enough to conform to irregular shaped surfaces. It is inert and will not deteriorate, and is resistant to chemicals and bacteria commonly found in soil.
As a wrap over cold-applied Graycoat or Temcoat coating on straight pipe and irregular metal surfaces such as T's and Couplings.
- Pre-apply Graycoat or Temcoat coating and form Poly-Ply wrapper over the coated surface. An additional second coating of Graycoat or Temcoat can then be applied over the Poly-Ply for greater protection.
- Coreless rolls in cartons containing 50 sq. yds.
- 4" x 50' rolls (27 rolls/carton)
- 6" x 50' rolls (18 rolls/carton)
- 9" x 50' rolls (12 rolls/carton)
- 12" x 50' rolls ( 9 rolls/carton)
- 18" and 36" widths available by special order.
- Color: Clear
- Thickness: 1.5 mils
- Dielectric strength: 2000 volts/mil
- Water absorption: negligible
- 3-Ply composition for extra mechanical strength
- High Dielectric strength
- Conforms to irregular shapes
- Composed of inert plastic film that will not deteriorate
- Resistant to chemicals and bacteria
- Convenient size of roll
- Relatively inexpensive
|
|
TRENTON TEMCOAT PRIMER
|
|
Temcoat
is an anti-corrosive compound for use in high ambient temperatures.
It is over-wrapped with Trenton Poly-Ply.
- Description: TEMCOAT
is a high temperature petrolatum wax coating compound that will
not melt and can be applied at ambient temperatures up to 200° F. It does not require a primer or curing time and is easily hand
applied.
- End Use: TEMCOAT is used as an anti-corrosion compound for underground
and under water metal surfaces. It is used as a mastic in cold-applied
wax systems or as priming paste with wax tape systems. Because
of its paste consistency over a wide temperature range, it is
an excellent mastic for filling voids in both systems. It can
be used for straight pipe, irregular fittings, and flat surfaces.
- Packaging: 3
gallon pails (approx. 24 pounds/pail)
-
Supports cathodic protection
-
Withstands high ambient temperatures
-
Goes on easily
-
No primer required
-
No waiting for drying
or curing
|
Specifications |
| Color |
Brown |
| Pour Point |
Non-melting |
| Flash Point |
350° F (minimum) |
| Dielectric strength |
100 volts per mil |
| Application Temperature |
32° - 200° F |
|
|
Trenton Keyhole Patch Pad and Tools |
|
Description:
The Trenton Keyhole Patch Pad and Tools
enable utilities to apply a coating to a pipe surface through
a small-diameter hole or keyhole. The components include two
tools (attached to extendable poles) and a patch pad with
pre-applied coating.
End Use:
The system is an excellent solution for
applying a coating within a small-diameter hole over cadwelds
or coating holidays.
Advantages:
- Coating is pre-applied or hand-applied
to pads
- Non-hazardous, no VOCs
- No waiting for drying or curing
- Immediate backfill
- Minimal surface preparation
Operating Procedures:
- Wire brush and clean the surface
of any loose coating, rust, scale and foreign matter.
- Secure the extension handles (supplied
by Trenton or by the utility) to the patch pad applicator
and the finishing tool.
- Attach a pre-coated patch pad
to the applicator tool. (Or anticorrosion compound can be
applied by hand directly to the bottom of a dry pad.)
- The applicator tool, with the
coated patch pad attached, is then lowered into the keyhole
and onto the pipe surface to be protected.
- Use the finishing tool to hold
the patch pad to the pipe while lifting off the applicator
tool and leaving the patch pad on the pipe.
- Use the finishing tool to press
the pad firmly to the pipe, making sure that coating compound
is squeezed out on all edges and ensuring that the pad is
firmly adhered.
- The patch pad (with coating) now
protects the pipe, and backfill can begin immediately.
Packaging:
- Patch Pad: 4”, 6" or 5"×8"
pad
- Tools: Patch pad applicator and a finishing
tool
Specifications:
PATCH PAD COATING:
Color: White
Flash point: 350°F (minimum)
Dielectric strength: 100 volts per mil |

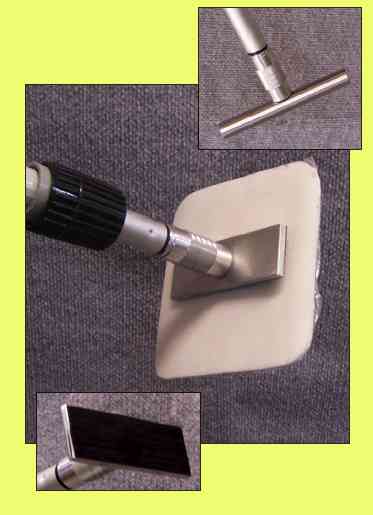

The Trenton Keyhole Patch Pad applicator tool
has a velcro surface (left) for holding the Patch Pad. The center
picture shows the applicator tool with an attached Patch Pad that
has pre-applied coating. The finishing tool (right) is used to press
the Patch Pad onto the pipe.
|
|
|
|
|
|
