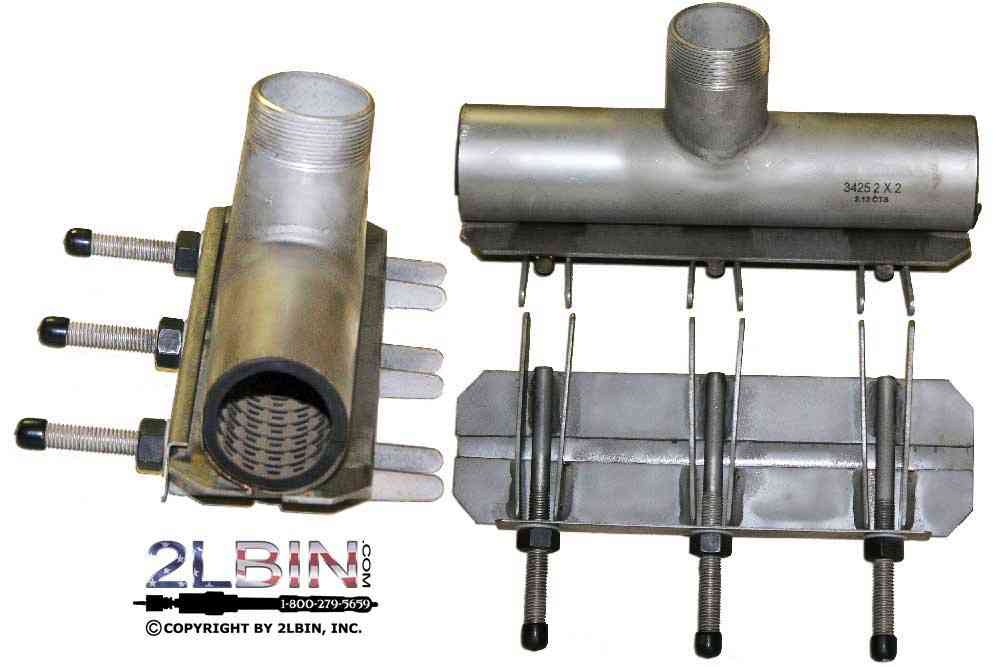

499 Copper Pipe Tapping Saddle |
||
|

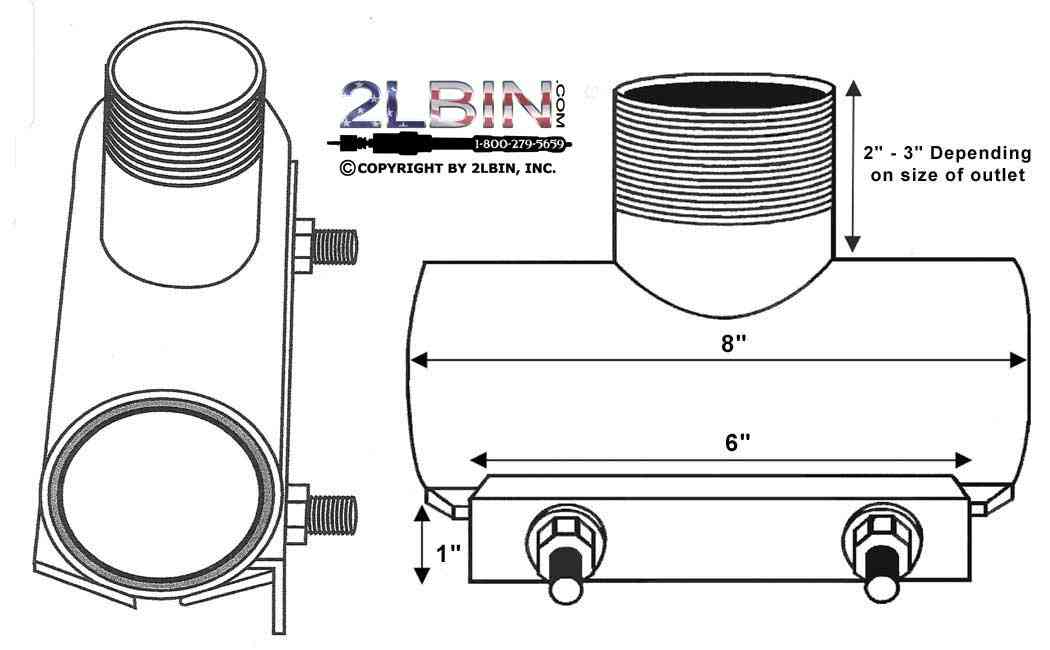

The 499 hot tapping pipe saddles are used for tapping water, sewage, and air systems. 2LBin offers a wide range of tapping outlets, including: size-on-size for copper tubing. Male NPT outlets are available in all standard pipe sizes, and the entire fitting is fabricated from stainless steel. The patented, Exact Fit 360 degree complete circle gasket, provides a safe and reliable seal, while insulating the saddle from galvanic corrosion. -Units are normally 8" wide. They can be cut down to 6" wide because of space requirements -We do offer 12" wide units as seen on the price list in a few select sizes -We can have specialty sizes made for you...Ex: 2" x 3/4" CTS with 5.00" Width -Special order them with
Female outlets (FIB) 499 Saddle Instructions and Specs.pdf
|
||
Copper Saddles Specifications |
Panel: Type 304 (18-8) Stainless steel per ASTM A240
|
 |
GorillaGrip TM 499 Hot Tap Saddles for Copper Pipe (CTS)
*All sales final for tapping saddles sold, effective 1-1-2011Item# |
Pipe Size |
O.D. Size |
Nipple Size |
Price |
499-101 |
3/4" |
.875" |
3/4 |
$187.00 |
499-102 |
1" |
1.13" |
3/4 |
$204.00 |
499-103 |
1" |
1.13" |
1 |
$209.00 |
499-104 |
1-1/4 |
1.38" |
3/4 |
$176.00 |
499-105 |
1-1/4 |
1.38" |
1 |
$209.00 |
499-106 |
1-1/4" |
1.38" |
1-1/4 |
$215.00 |
499-107 |
1-1/2" |
1.63" |
3/4 |
$177.00 |
499-108 |
1-1/2 |
1.63" |
1 |
$253.00 |
499-109 |
1-1/2" |
1.63" |
1-1/4 |
$250.53 |
499-110 |
1-1/2" |
1.63" |
1-1/2 |
$255.16 |
499-111 |
2" |
2.13" |
3/4 |
$209.00 |
499-112 |
2" |
2.13" |
1 |
$245.85 |
499-113 |
2" |
2.13" |
1-1/4 |
$253.15 |
499-114 |
2" |
2.13" |
1-1/2 |
$270.00 |
499-115 |
2" |
2.13" |
2 |
$282.68 |
499-116 |
2-1/2" |
2.63" |
3/4 |
$203.22 |
499-117 |
2-1/2" |
2.63" |
1 |
$250.65 |
499-118 |
2-1/2" |
2.63" |
1-1/4 |
$280.00 |
499-119 |
2-1/2" |
2.63" |
1-1/2 |
$286.00 |
499-120 |
2-1/2" |
2.63" |
2 |
$346.00 |
499-121 |
2-1/2" |
2.63" |
2-1/2 |
$402.00 |
499-122 |
3" |
3.13" |
3/4 |
$207.30 |
499-123 |
3" |
3.13" |
1 |
$255.77 |
499-124 |
3" |
3.13" |
1-1/4 |
$265.75 |
499-125 |
3" |
3.13" |
1-1/2 |
$275.74 |
499-126 |
3" |
3.13" |
2 |
$339.23 |
Item# |
Pipe Size |
O.D. Size |
Nipple Size |
Price |
499-127 |
3" |
3.13" |
2-1/2 |
$395.92 |
499-128 |
3" x 12" |
3.13" |
3 |
$411.26 |
499-129 |
4" |
4.13" |
3/4 |
$211.44 |
499-130 |
4" |
4.13" |
1 |
$261.00 |
499-131 |
4" |
4.13" |
1-1/4 |
$271.17 |
499-132 |
4" |
4.13" |
1-1/2 |
$281.27 |
499-133 |
4" |
4.13" |
2 |
$346.17 |
499-134 |
4" |
4.13" |
2-1/2 |
$404.04 |
499-135 |
4" x 12" |
4.13" |
3 |
$420.00 |
499-137 |
4 x 12" |
4.13" |
4 |
$428.00 |
499-13834 |
5" |
5.13" |
3/4 |
$215.65 |
499-138 |
5" |
5.13" |
1 |
$266.30 |
499-139 |
5" |
5.13" |
1-1/4 |
$276.60 |
499-140 |
5" |
5.13" |
1-1/2 |
$286.88 |
499-141 |
5" |
5.13" |
2 |
$352.94 |
499-141212 |
5" |
5.13" |
2 1/2 |
$412.23 |
499-142 |
5"x12" |
5.13" |
3 |
$428.28 |
499-143 |
6" |
6.13" |
3/4 |
$220.03 |
499-144 |
6" |
6.13" |
1 |
$271.72 |
499-145114 |
6" |
6.13" |
1-1/4 |
$282.37 |
499-145 |
6" |
6.13" |
1-1/2 |
$292.72 |
499-146 |
6" |
6.13" |
2 |
$368.12 |
499-147 |
6" |
6.13" |
2-1/2 |
$420.64 |
499-148 |
6"x12" |
6.13" |
3 |
$436.95 |
499-151 |
8" |
8.13" |
3/4 |
$237.00 |
499-152 |
8" |
8.13" |
1 |
$282.61 |
499-153114 |
8" |
8.13" |
1-1/4 |
$296.38 |
499-153 |
8" |
8.13" |
1-1/2 |
$307.34 |
499-154 |
8" |
8.13" |
2 |
$381.73 |
499-155 |
8" |
8.13" |
2-1/2 |
$445.90 |
499-156 |
8"x12" |
8.13" |
3 |
$465.33 |
Item# |
Pipe Size |
O.D. Size |
Nipple Size |
Price |
