Thermowell Wellsetter Tool

Wellsetter Tool Only

Qtn:	Part #:
1	WellSetter 2LB-0150-WI Well-insertion tool
1	Positive well retention and positive/changeable socket keeper
1	Bleed-off port
1	7/8" Sockets
1	1 1/8" Sockets
1	Operating manual
Total	$841.50 + Shipping
Qty:
Need additional items to complete your thermowell installation? Items such as Thermolets or Replacement Accessories? Feel free to call us at 1-800-279-5659 to complete your order or any support you require.

The 2LBin WellSetter-150 Tool was designed by tappers who rely on a safe and dependable means of installing thermo-wells under pressure. The WellSetter-150 kit includes two common wellhead sockets, 7/8" and 1 1/8". Our sockets are changeable, yet are retained by our special rod; and the sockets include a set screw to retain the thermo-well. Any special size sockets can be provided.

The WellSetter-150 allows pretesting of the weld or threaded connections prior to tapping and setting the wells. It also provides confirmation that the Thermo-well is installed into the Thermolet™ in a fluid tight fashion prior to removal of the tool.

The Well-Setter packing also can be used to hottap 1/2" and 3/4" Thermolet™ fittings by using our solid drill bit accessories.

Designed by Tappers - for Tappers
Installs thermowells without depressurizing
With added accessories this packing can perform taps for 1/2" & 3/4" thermolets.
Total weight of WellSetter tool is 9lbs.
1" and 1 1/2" adaptors and hole saw accessories upgrade machine to perform 3/4"-2" hot taps
Made in the USA
US and International Patents pending

Max Operating Temperature: 250°F @ 225psi
(optional) High Temperature Kit 495°F @ 150PSI.

Don't be fooled by cheap imitations! We are the original manufacturer of the WellSetter-150!

Owners Manual

Thermowell Wellsetter Tool Turn-key Package

Qtn:	Part:
1	WellSetter 2LB-0150-W-SolidDrills Well-insertion tool
1	positive well retention and positive/chaffff
1	bleed-off port and both 7/8” & 1 1/8”
1	7/8" Sockets
1	1 1/8" Sockets
1	Drill Stop Collar
1	11/16” Solid Drill
1	7/8” Solid Drill
1	Operating manual
Total	$1,705.00 + Shipping
Qty:

This Wellsetter Taps:

Asbestos-Cement Pipe
Stainless Steel Pipe
Steel Cylinder Pipe
Carbon Steel Pipe
Ductile Iron Pipe
Cast Iron Pipe
CMLC Pipe
Copper Pipe
PVC Pipe
Polyethylene Pipe
Fiberglass Pipe
Transite Pipe
Metal Walls
Concrete Walls
Steel Plate

Line Contents

Crude Oil
Gasoline
Natural Gas
Domestic Water
Reclaimed Water
Potable Water
Chemicals
Wastewater
Sewage
Steam
Chilled Water
Heated Water

Wellsetter Thermowell Machine Accessories
Thermolet™ Thermowell Fitting Specifications: 1018 CF Bar ASTM A108 07 Material is USA Milled and Material certifications on file (Thermowells sold separately) Threaded national iron pipe thermolets. Material certifications upon request/British threads available. Mechanical saddle pricing upon request. Thermolet PDF Cutsheet
Buy it now	Specs	Item #	Price
Qty:	Carbon Steel Thermolets with 3/4 IP Well Thread	2LB-Therm-3/4	$56.99
Qty:	Carbon Steel Thermolets with 1/2 IP Well Thread	2LB-Therm-.50	$51.86
Qty:	Carbon Steel Thermolets with 1" IP Well Thread	2LB-Therm-1	$63.25
Qty:	304 Stainless Steel Thermolets with 3/4 IP Well Thread	2LB-Therm-.75-304-SS	$109.59
Qty:	304 Stainless Steel Thermolets with 1/2 IP Well Thread	2LB-Therm-.50-304-SS	$97.98

Thermolet™ Thermowell Fitting Specifications: 1018 CF Bar ASTM A108 07 Material is USA Milled and Material certifications on file (Thermowells sold separately) Thermolets with double threaded ends require a 406 service saddles ( 406 Hot Tap Service Saddle ) Saddles would require 1-1/2” or 2” Outlet for specified pipe OD. Threaded national iron pipe thermolets. Material certifications upon request/British threads available. Mechanical saddle pricing upon request. Thermolet PDF Cutsheet
Buy it now	Specs	Item #	Price
Qty:	Carbon Steel 3/4” Thermolet with 2” External Threads on Both Ends	2LB-Therm-3/4-Double	$112.70
Qty:	Carbon Steel 1/2” Thermolet with 1-1/2” External Threads on Both Ends – PN	2LB-Therm-1/2-Double	$104.65

Solid Drills Boring bar drill bits And if you don’t have a way to drill we can offer solid bits for the packing tool to perform tapping for thermowells. A wide assortment of tapping tools are available. These solid bits are threaded and pinned – not welded.
Buy it now	Specs	Item #	Price
Qty:	11/16” solid drill	T1-BBT-1800	$432.00
Qty:	7/8” solid drill	T1-BBT-1801	$459.00


18" D- Boring Bar For 3/4" - 1 1/4" Taps
Specs	Item #	Price
18" D- Boring Bar for 3/4" - 1 1/4" Taps	T1-BBD-1800	$290.25
Qty:

Drill Stop Collar
Specs	Item #	Price
Drill Stop Collar	WST-SC-058	$26.56
Qty:

Cutter Bushing Cutter Bushing is for adapting smaller boring bars to accept larger holesaws
Specs	Item #	Price
Cutter Bushing	CutterBushing	$12.08
Qty:

1/4" x 4" Pilot Drill Bit 3/4" - 1 1/4" Taps
Specs	Item #	Price
1/4" x 4" Pilot Drill Bit	T1P-1402-RRW	$26.50
Qty:

Packing Adaptor 3/4" - 1 1/4" Taps
Specs	Item #	Price
Packing Adaptor	T1-packing	$283.50
Qty:

2" Tapping Adapter
Specs	Item #	Price
2" Tapping Adapter	T1P-IP-200	$207.84
Qty:

High Temp Packing Assembly
Specs	Item #	Price
High Temp Packing Assembly. Raises max temperature to 495 Deg. F° @ 200PSI. Comes with two circle gaskets.s	T1S-STM-450	$494.03
Qty:

T-Handle
Specs	Item #	Price
T-Handle	T-Handle	$86.25
Qty:

Rod To connect the T-Handle to the sockets
Specs	Item #	Price
Rod	Rod	$192.00
Qty:

7/8" Socket
Specs	Item #	Price
7/8" Socket	7/8" Socket	$80.50
Qty:

1-1/8" Socket
Specs	Item #	Price
1-1/8" Socket	1-1/8" Socket	$92.00
Qty:

Thermo-well Inserting

Thermo-well inserting is the installation of temperature sensing wells into existing systems without a shutdown. IFT can provide thermo-wells and/or install your thermo-wells without interrupting service. A number of thermo-well models are available for a wide range of temperature applications, pressures, and types of pipelines. Monitoring equipment available varies from basic on-line thermo-meters to high tech microprocessor temperature controllers.

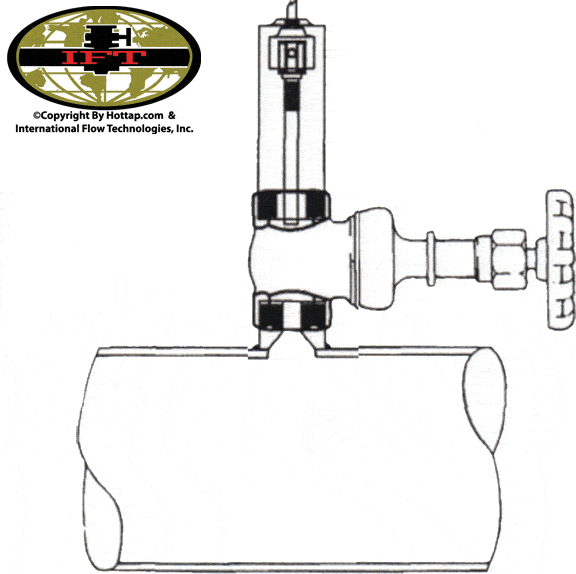

	A wide variety of thermo-wells can be installed into any type of pipeline. In this particular case, the pipeline is steel and the "Weld-on" fitting is welded to the pipe. With non-weldable pipe, a bolt-on saddle may be supplied. The "Weld-on" assembly has been welded to the pipeline and a temporary access valve has been installed and pressure tested. After testing the fitting and temporary valve; the hot tap can be made into the pipeline. After the drill is retracted above the valve, the valve is closed, and the tapping machine is removed from the line.
	The thermo-well is held by a hex socket that has an allen screw to retain the thermo-well. The housing containing the thermo-well is screwed onto the temporary access valve.
	The valve is opened and the thermo-well is pushed past the valve and threaded into the inside thread of the "weld-on" fitting.
	When properly installed, the pressure is sealed off by the thermo-well and the temporary valve can be removed.

Thermowell Selections, Equipment and Temperature Sensing Wells

TYPE: TW5-260 BORE SIZE: .260 PROCESS CON.: 1/2",N.P.T. 7/8" Hex Nut MATERIALS: Brass, Carbon Steel, 304sst,316sst	TYPE: TW5-385 BORE SIZE: .385 PROCESS CON.: 1/2",N.P.T. 7/8" Hex Nut MATERIALS: Brass, Carbon Steel, 304sst,316sst	TYPE: TW5-510 BORE SIZE: .510 PROCESS CON.: 3/4", N.P.T. 1-1/8" Hex Nut MATERIALS: Brass, Carbon Steel, 304sst,316sst

Now the tempature sensor can be installed into the wall shaft.

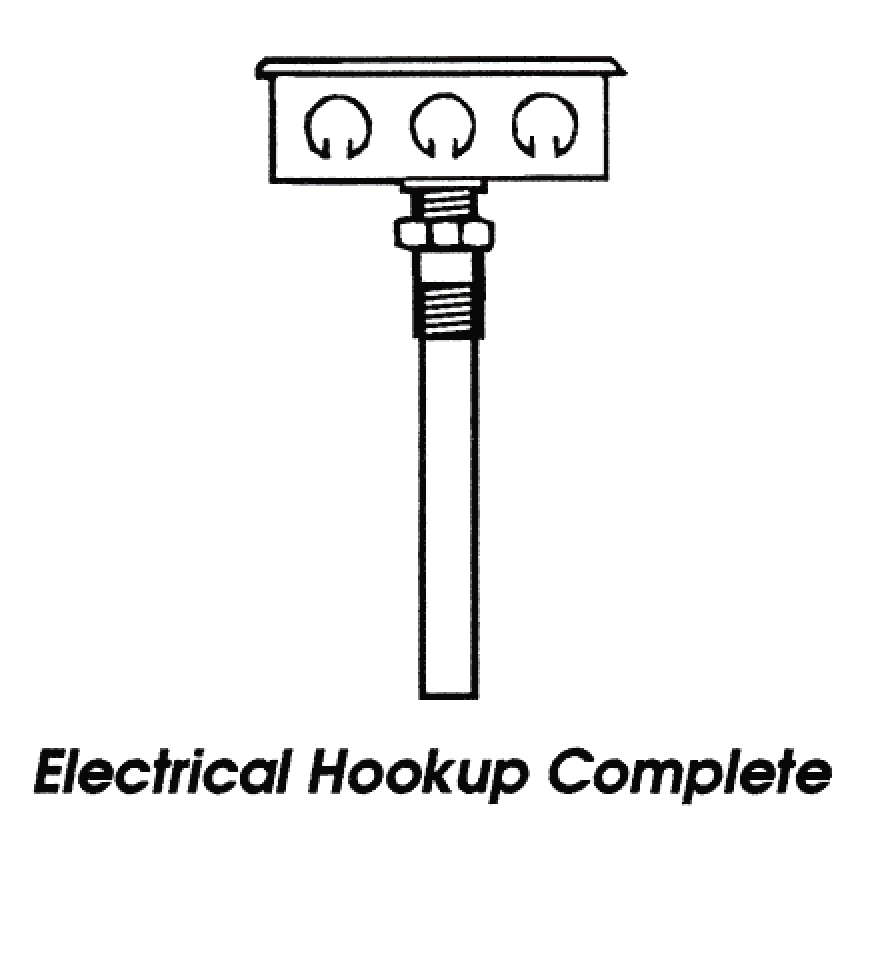

Socket Fit Thermowell	Compression Fit Thermowell	Electrical Hookup Complete
